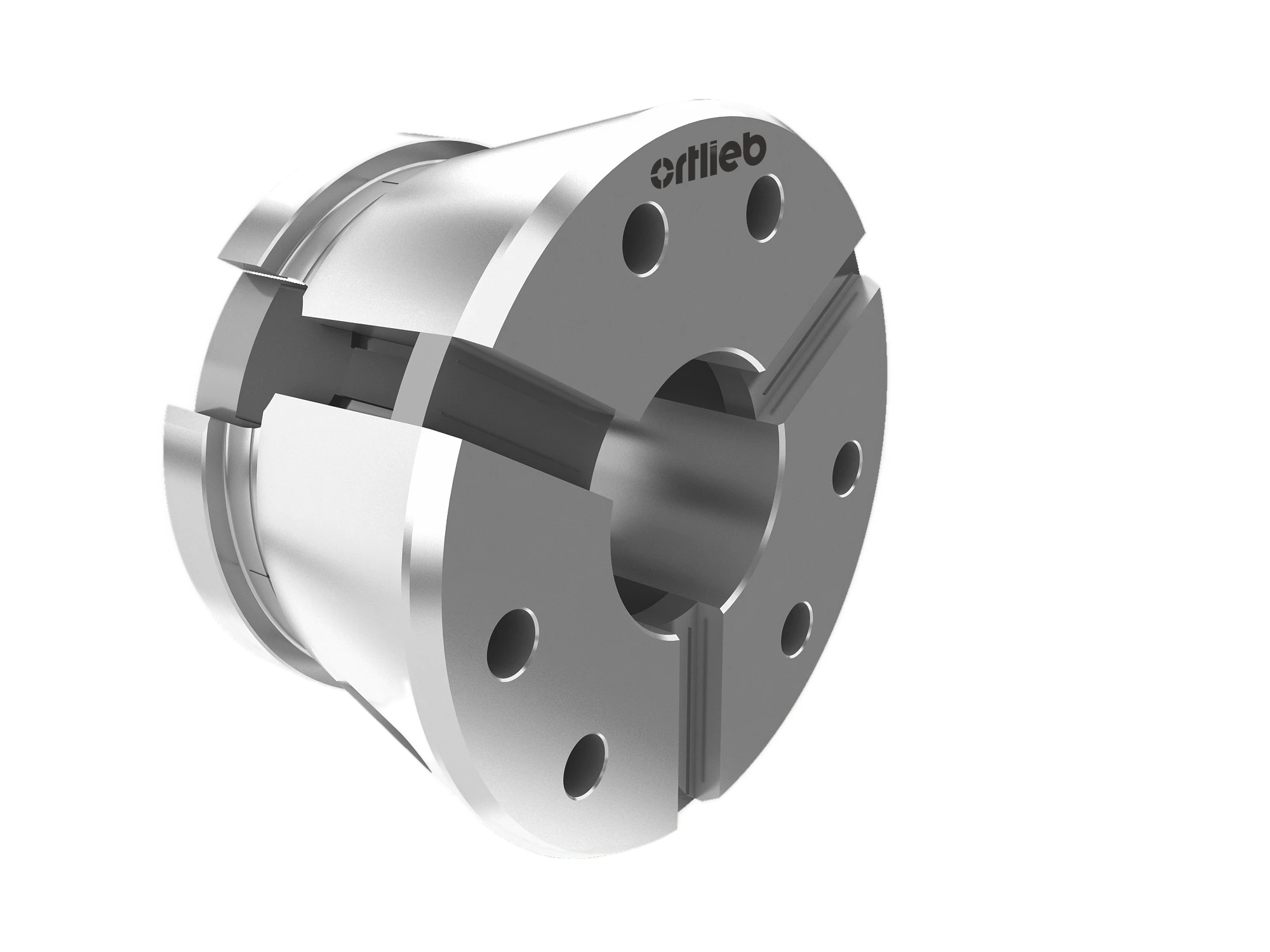

SPANNAX® clamping heads
The GT® clamping heads are based on the Rubber-Flex® principle, which provides an increased clamping tolerance of ± 0.5 mm. They are available in round, square, or hexagonal designs, as well as with smooth, cross-grooved, or longitudinal and cross-grooved bore.
Other profiles are available upon request. Rod material is clamped in tension heads with longitudinal and transverse grooves. Pre-machined or sensitive workpieces can be clamped in clamping heads with smooth bore at a possible roundness accuracy of ≤ 0.01 mm with the highest precision.

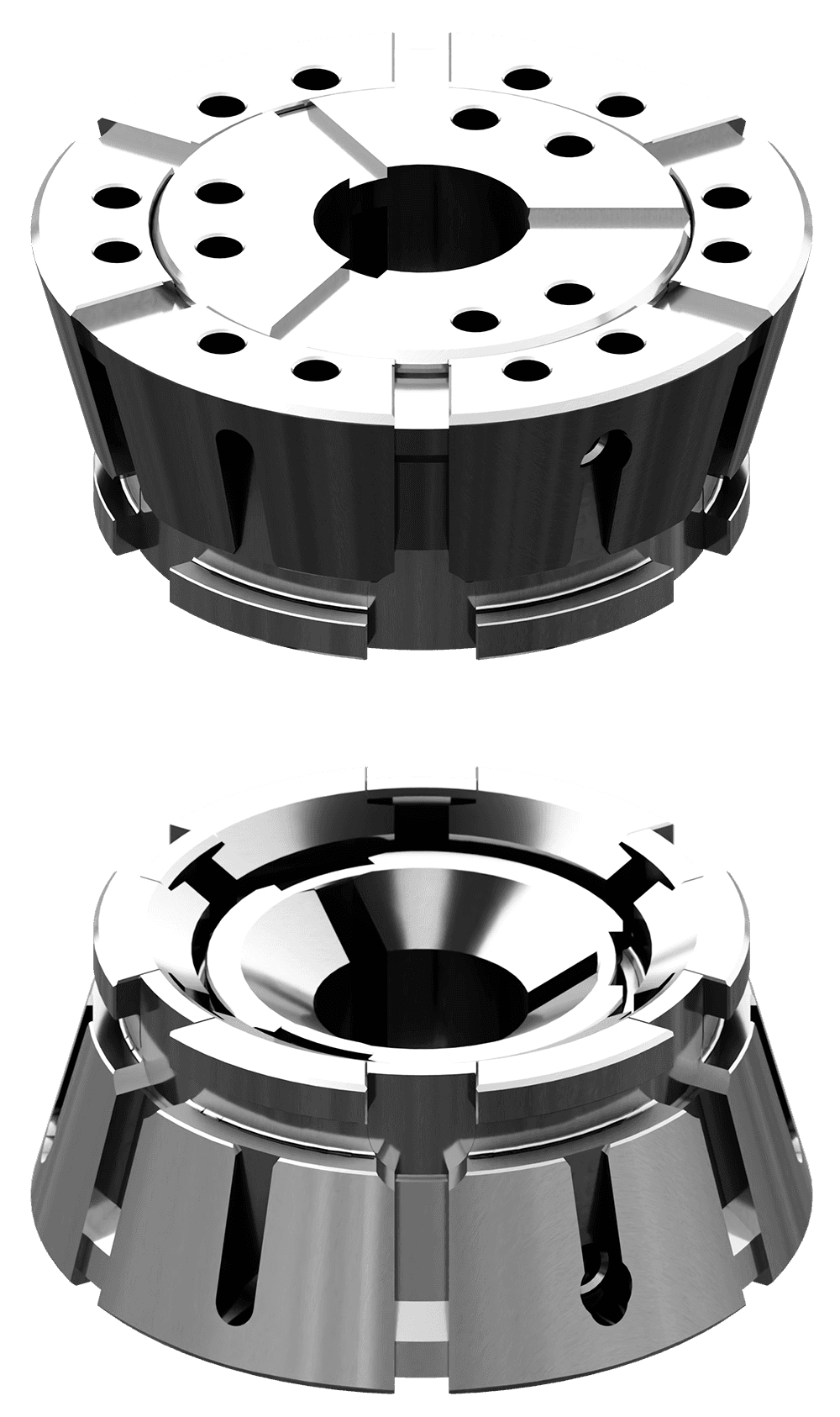

Rubber-Flex® GT
Clamping heads
for main and counter spindle
Short changeover times when changing the clamping head due to manual or pneumatic changeover device
Fewer conversions through
Clamp tolerance ± 0.5 mm
The 6-part version of the GT 80 and GT 100 results in additionally increased tension.
Special profiles upon request
