This clamping system is used on turning, grinding, milling, and circular indexing machines. As a fully modular system, it is possible to assemble the individual components of the chuck according to the application.
All that is needed is the maximum workpiece diameter and the spindle connection dimensions of your machine.
You can easily make the connection adapter yourself. Of course, we are also happy to manufacture a connection adapter for your machine.
Send us the spindle drawing of your machine or use the form sheet.
Available versions:

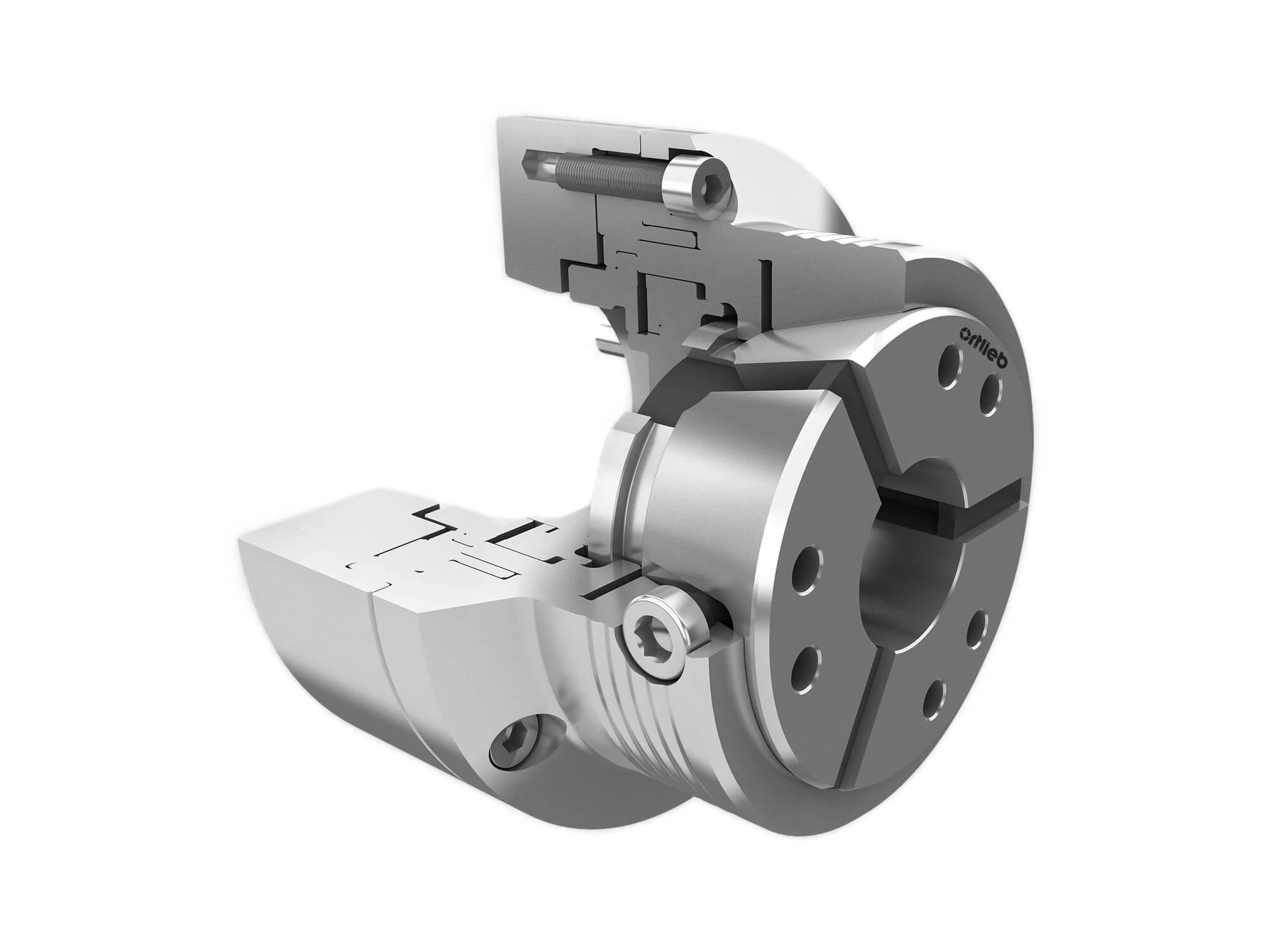

Pass-through chuck for bar machining
Stop block with interchangeable fixed stop for insert parts and bar stock
DL clamping chuck with replaceable fixed stop for position-neutral
Tensioning of insert parts and bar material
Machine-specific special solutions on request
SPANNAX®
pass-through feed
Ideal for bar handling on the main spindle
Increase of the workspace in the machine through compact design and reduced disruptive edges.
Gentle on spindles due to low centrifugal forces
High tensile strength

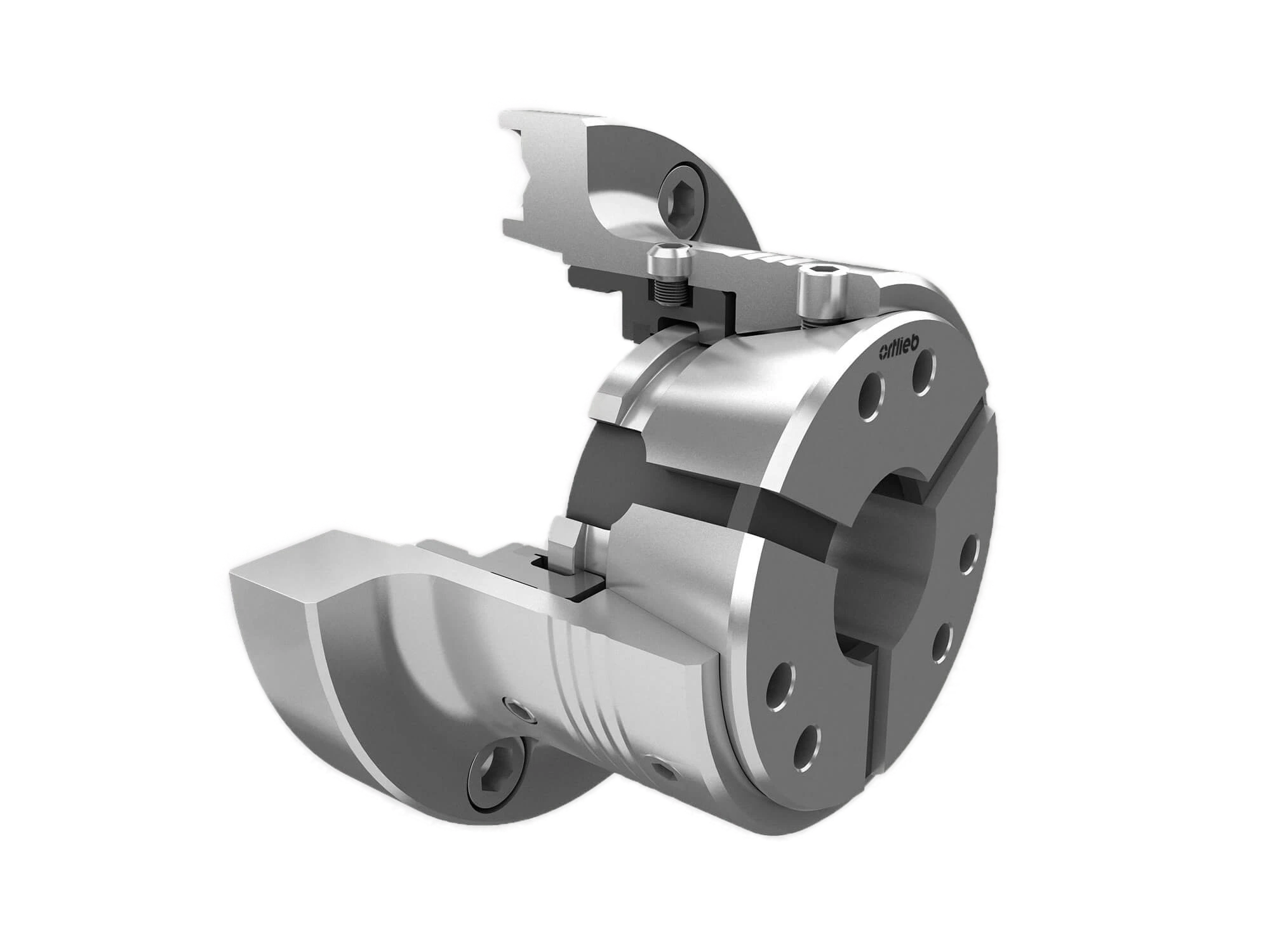

SPANNAX®
Clamping fixture with full passage
Ideal for processing insert parts and rod material on the main spindle.
High-precision axial reference of the workpieces through downward pull on the inner stop
Gentle on spindles due to low centrifugal forces
Short changeover times for through processing with quickly interchangeable stops

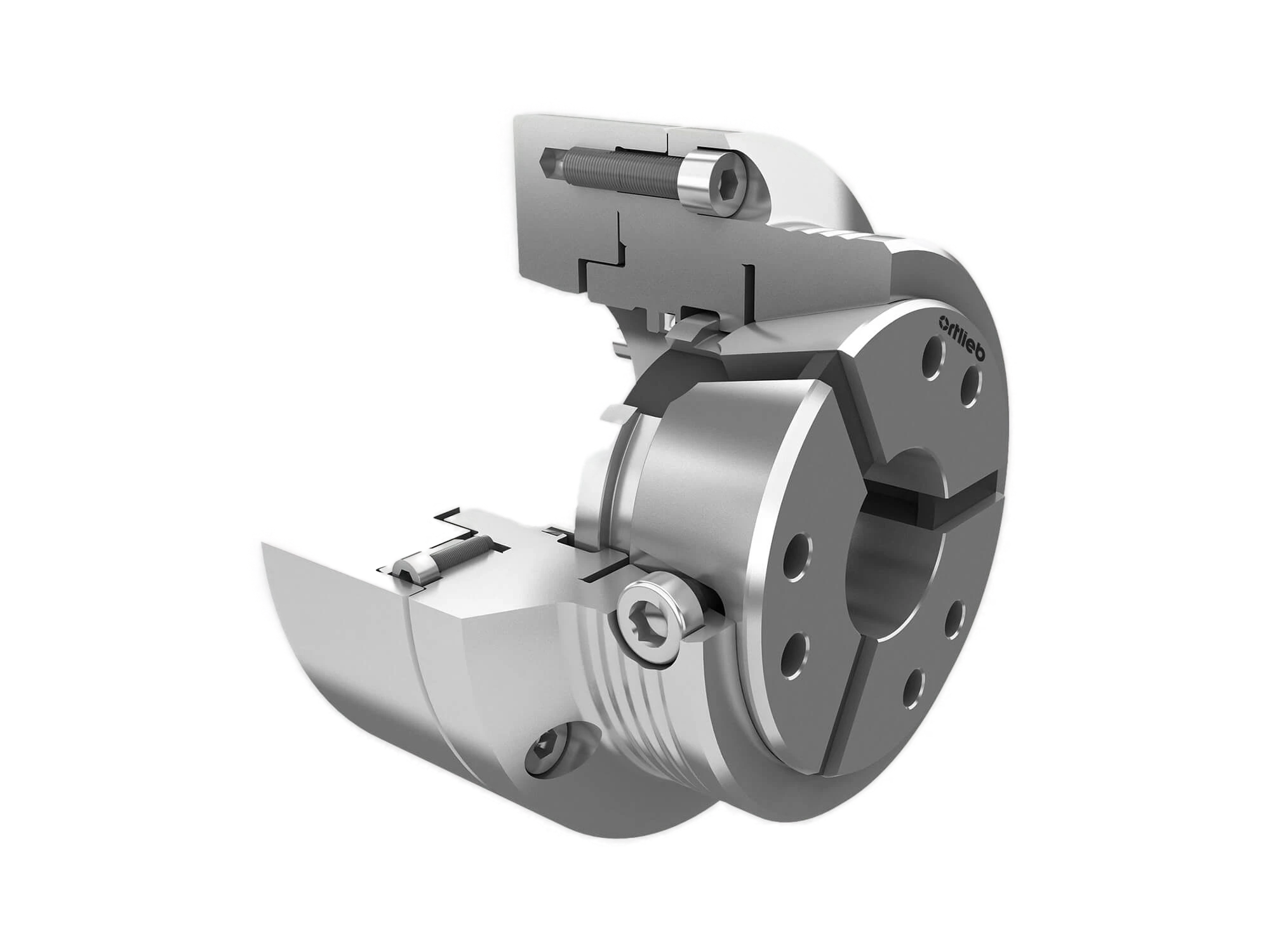

SPANNAX®
DL clamping chuck "Kombi" for position-neutral clamping
Ideal for the processing of insert parts and bar stock on the main and counter spindle
Enlargement of the workspace through a compact design and reduction of interference edges
Spindle-friendly due to low centrifugal forces and axial-force-free clamping
Short changeover times on through by quickly interchangeable stops

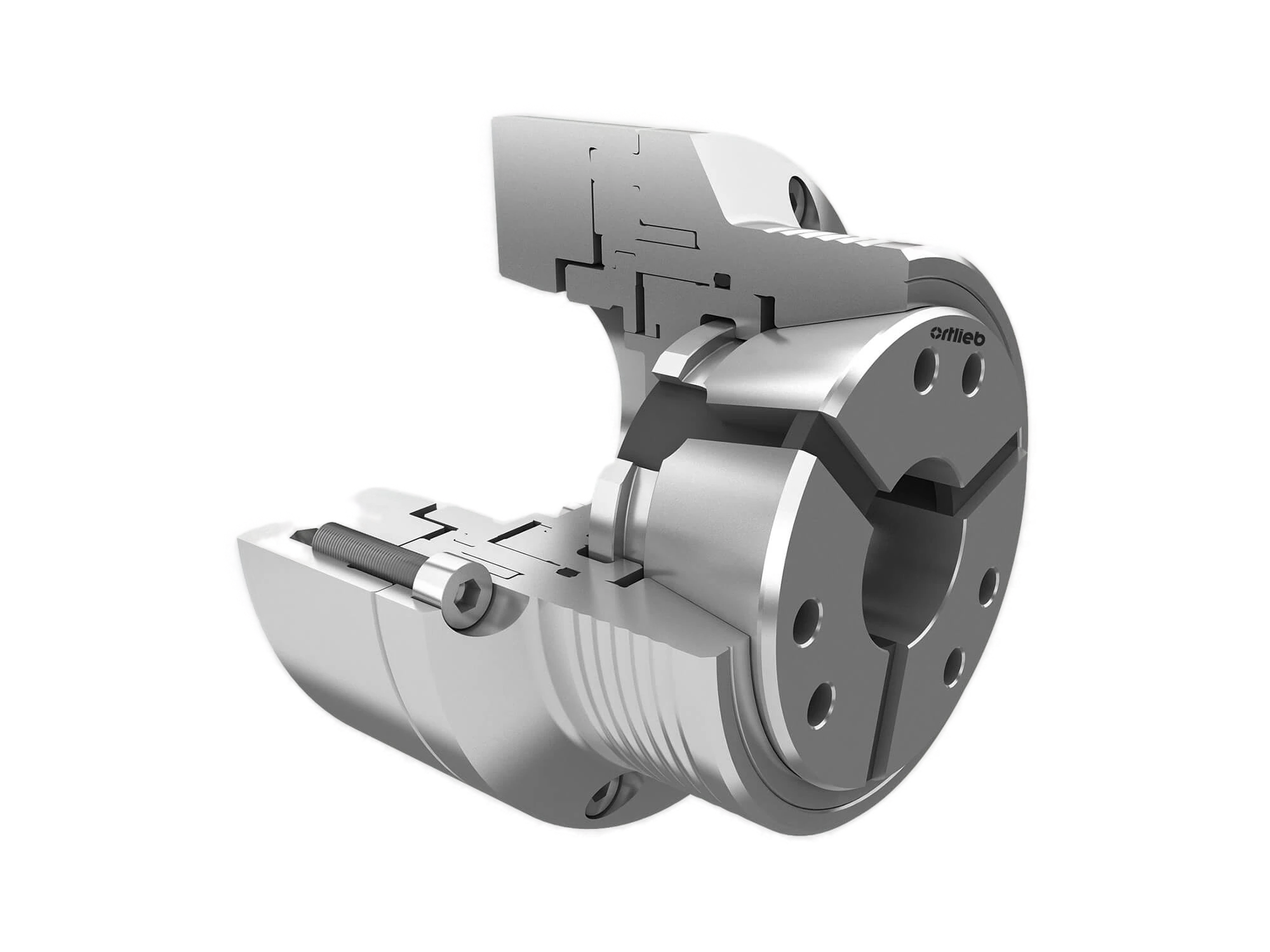

SPANNAX® SlimLine
pass-through feed
Now even more compact and lighter for the rod processing on the main spindle
Significantly reduced mass and moment of inertia, thus more spindle-friendly
Significantly reduced disturbance contours thereby improving the accessibility of the workpiece.
Increased roundness accuracy up to 0.005 mm,
since the chuck body is made from a single piece
Higher permissible speeds up to 8000 min-1
(Sizes 42 and 65)
Extremely user-friendly and low-maintenance, completely sealed
SPANNAX®

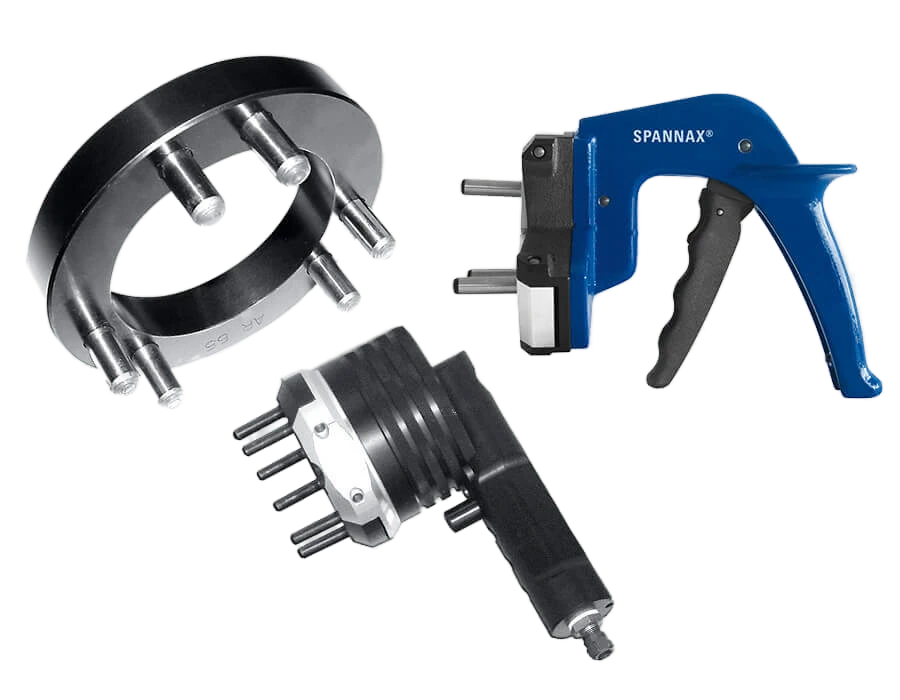

Accessories
Expansion rings; changing devices – pneumatic or manual – are required for changing the clamping heads.
Easy handling due to concentric force transmission
Robust and contemporary design
Extraction rings for soft Rubber-Flex® GT clamping heads
